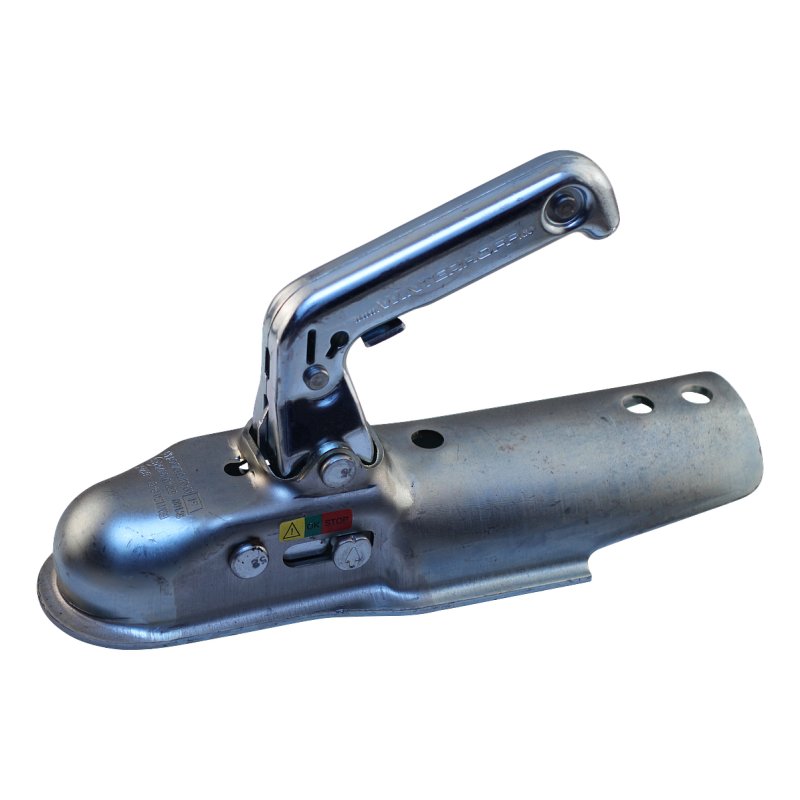

ball coupling WW150-RTG with plug holder Ø70mm

WW Winterhoff

Reference : 886.170.130.000

Brand WW Winterhoff Application Boat trailer Trailer Industry Trailer type coupling head type coupling head type WW150-RTG with drawbar size holder Ø70 mm maximum allowable capacity 1500kg ECE R55 typegoedkeuring vervallen per 20-03-2025E1 R55-010376 EG 94/20 E1*94/20*0376*00 D/dc ECE value 14,1kN D/dc kN value 14,1KN vertical hole(s) placement vertical hole(s) 12.5 mm mounting hole(s) 90/116 ball pressure (S) ECE 100 ball pressure ..

45,04 € incl. VAT

Available in 48h 40 parts available in 48h

Specifications

IndustryRemorque
typetêtes d'attelage
materialfer
ApplicationRemorque à bateau Remorque
additional information 2ceci est le remplacement de 886.170.150.001
pitch mounting holes90/116
hole pattern3x vertical
surface treatmentzingué
max allowable range1 500 kg
supporting load (S) ECE100
type of ball couplingWW150-RTG avec support de fiche
dimension drawbarØ70 mm
mounting hole(s) vertically12,5 mm
supporting load (S)100 kg
D/dc value in kN14,1KN
D/dc value ECE14,1kN
EG 94/20E1*94/20*0376*00
ECE R55typegoedkeuring vervallen per 20-03-2025E1 R55-010376

Description

WW150-RTG coupling heads with Ø70mm plug holder

Make
WW Winterhoff
Implementation
Boat trailer Trailer
Industry
Trailer
type
coupling heads
type of coupling head
WW150-RTG with plug holder
dimension of the drawbar
Ø70 mm
maximum capacity permitted
1500kg
ECE R55
typegoedkeuring vervallen per 20-03-2025E1 R55-010376
EG 94/20
E1*94/20*0376*00
D/dc ECE value
14.1kN
D/dc value kN
14.1KN
hole location
3x vertical
vertical mounting hole(s)
12.5 mm
fixing hole
90/116
ball pressure (S) ECE
100
ball pressure (S)
100 kg
equipment
Iron
surface finish
Zinc
further information 2
this is the replacement of 886.170.150.001
REACH compatible
yes
