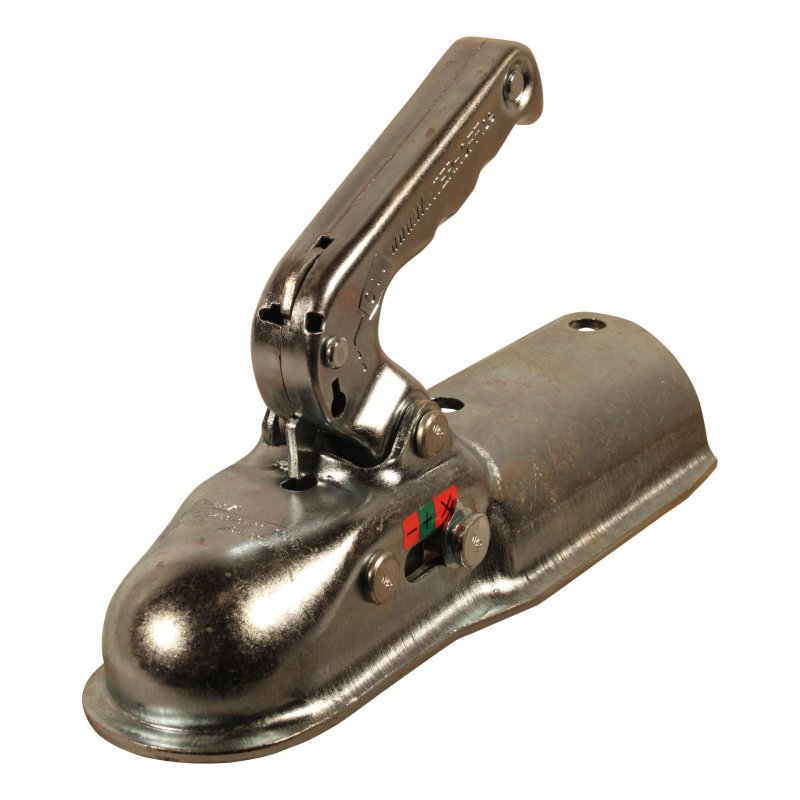

ball coupling WW150RGK Ø70mm
WW Winterhoff
Reference : 886.170.150.004
Brand WW Winterhoff Application Boat trailer Trailer Industry Trailer type coupling heads type coupling head type WW150RGK drawbar size Ø70 mm maximum allowable capacity 1500kg EG 94/20 typegoedkeuring vervallen per 20-03-2025 E1*94/20*0376*00 D/dc value in kN 14,1KN position of holes 2x vertical hole(s) vertical fixing hole(s) 12.5 mm mounting hole 90mm ball pressure (S) ECE 100 ball pressure (S) 100 kg iron material zinc finish surface compatible REAC..
In stock (1 disponible) 9 parts available in 48h
Specifications
| Industry | Remorque |
| type | têtes d'attelage |
| material | fer |
| Application | Remorque à bateau Remorque |
| pitch mounting holes | 90mm |
| hole pattern | 2x vertical |
| surface treatment | zingué |
| max allowable range | 1 500 kg |
| supporting load (S) ECE | 100 |
| type of ball coupling | WW150RGK |
| dimension drawbar | Ø70 mm |
| mounting hole(s) vertically | 12,5 mm |
| supporting load (S) | 100 kg |
| D/dc value in kN | 14,1KN |
| EG 94/20 | typegoedkeuring vervallen per 20-03-2025 E1*94/20*0376*00 |
Description
head of 039; coupling WW150RGK Ø70mm
- Make
- WW Winterhoff
- Implementation
- Boat trailer Trailer
- Industry
- Trailer
- type
- coupling heads
- type of coupling head
- WW150RGK
- dimension of the drawbar
- Ø70 mm
- maximum capacity permitted
- 1500kg
- EG 94/20
- typegoedkeuring vervallen per 20-03-2025 E1*94/20*0376*00
- D/dc value kN
- 14.1KN
- hole location
- 2x vertical
- vertical mounting hole(s)
- 12.5 mm
- fixing hole
- 90mm
- ball pressure (S) ECE
- 100
- ball pressure (S)
- 100 kg
- equipment
- Iron
- surface finish
- Zinc
- REACH compatible
- yes
