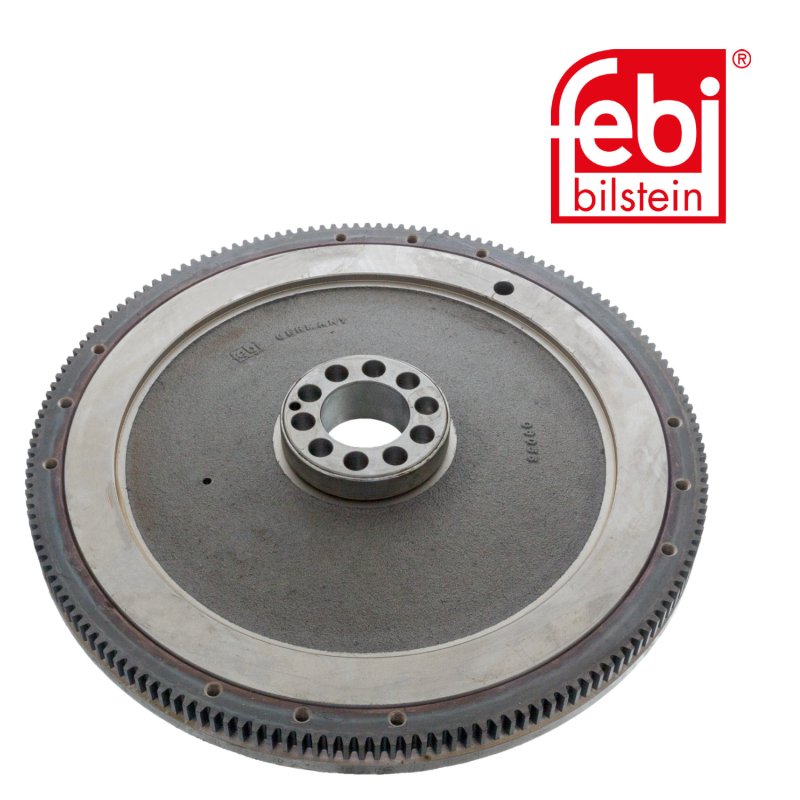

Flywheel with thrust ring and starter ring gear

Febi Bilstein

Reference : FEB.06055

Brand Febi Bilstein Industry Truck Miscellaneous Breite des Auflagerings für Kupplungsbetätigung: 120 / Version mit EDC febi 10133 für MB / Version mit EDC febi 10395 für MAN / alte Version ohne EDC Pack.Unit 1 Net Weight 31 Gross Weight 32,230 Weight 31 No. of Teeth 160 No. of Mounting Holes - Hub Inner Diameter 62 Hub Mounting Hole Diameter 17 Hub Outer Diameter 120 Pitch Circle Diameter - Hub 88 Number of mounting holes - Hub 10 Pitch Circle Diameter – Clutch Pressure Plate 450 Internal thre…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Poids lourd
suitable for	Daimler Buses (ex. EvoBus), MAN, Mercedes-Benz Trucks, Neoplan
OE numbers	442 030 02 05, 51.02301.5034, 51.02301.5068, 51.02301.7387, 51.02301.7411, 51.02301.7414
Classification	4 - Production partenaire avec marquage bilstein group
Pack.Unit	1
No. of Teeth	160
Miscellaneous	Breite des Auflagerings für Kupplungsbetätigung: 120 / Version mit EDC febi 10133 für MB / Version mit EDC febi 10395 für MAN / alte Version ohne EDC
associated "trash" master no.	1 910 841
A	61,9 mm
L - Surface	gris
M - Material	grey cast iron, steel
B	88 mm
N - Weight	32,5 kg
C	120 mm
D	235 mm
O - Marking	febi-logo, Germany
E	450 mm
Hub Mounting Hole Diameter	17
Number of mounting holes - Hub	10
Number of mounting holes for the clutch pressure plate	12
Pitch Circle Diameter - Hub	88
Pitch Circle Diameter – Clutch Pressure Plate	450
Hub Outer Diameter	120
Clutch Pressure Plate Outer Diameter	475
Recess diameter	236
Hub Inner Diameter	62
Internal thread diameter for clutch pressure plate mounting hole	M10x1,5
F	475 mm
G	486 mm
H	12 x M 10
i	10 x diam.. 17 mm
K - Function	160 Teeth, hardened gear rim
